ACD-23105-120HM

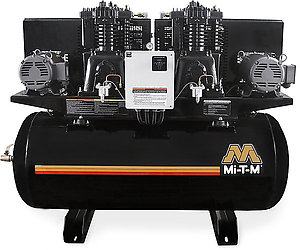

Loaded with standard features, the M Series air compressors are available in many motor configurations.  Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.

Compressor Pump: Two stage cast iron · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Motor:  Magnetic start for thermal overload protection

Frame:  Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard

Components:  3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve

MSRP: $13,510.00

Specifications

CFM @ 175 PSI 36.0
Horsepower/Motor 5.0 HP, 230V, 1Ø, 46.0A
Compressor Two Stage, cast iron
Tank Size 120-gallon
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 871.00 lbs.
Shipping Weight 950.00 lbs.
Length 74.00 in.
Width 26.50 in.
Height 58.00 in.
