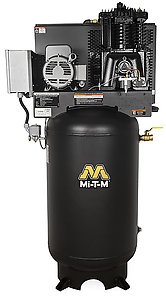

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.
Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose
Motor: Low RPM industrial electric motor · Magnetic start for thermal overload protection
Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard · Vibration isolator pads protect the tank from stress
Components: Large flywheel for extra cooling and longer life · ASME safety valves · Pressure gauge · Tank shut-off valve · Tank drain valve automatically drains liquid from air receiver · Intake filter/silencer · Belt tightening system pulls engine straight to ensure constant belt alignment · Hour meter displays the number of hours compressor has been in operation · Low oil shutdown shuts unit down when oil falls below adequate levels · Air-cooled after cooler removes up tp 65% fo moisture and drops temperature within 10-degrees of ambient
Price: $7,620.00
CFM @ 175 PSI | 18.0 |
Horsepower/Motor | 5.0 HP, 230V, 1Ø, 23.0A |
Compressor | Two Stage, cast iron |
Tank Size | 80-gallon |
Mobility | Stationary Air Compressors |
Stage | Two Stage Air Compressors |
Net Weight | 544.00 lbs. |
Shipping Weight | 695.00 lbs. |
Length | 33.00 in. |
Width | 25.00 in. |
Height | 73.00 in. |
