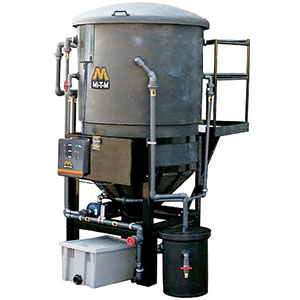

The mechanical oil/water separator systems are designed to remove free oils before discharging to your sanitary sewer. The oil/water separators will reduce the amount of suspended solids while removing hydrocarbons to meet local sanitary sewer discharge requirements.
The WCL Series offers the following features:
·300-gallon cone-shaped tank for effective settling and easy handling of solids
·1.0 HP surface-mount sump pump
·Solids separation chamber with bag filter and decanting
·Oil skimmer and decaneter for easy handling of oil
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
The WCL Series is perfect for the following applications:
·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses
*Float consists of 230V plug
+Control panel not included
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
| Flow Rate | 0-10 GPM |
| Clarifier Tank | 300-gallon |
| Oil Coalescing Area | 48 sq. ft. |
| Power Requirements | 230V, 1Ø, 8.0A |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 641.00 lbs. |
| Length | 48.00 in. |
| Width | 67.00 in. |
| Height | 97.00 in. |
