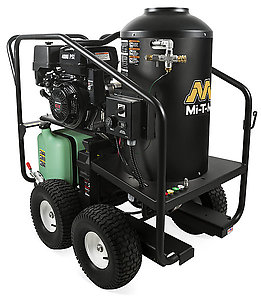

The new 12V hot water gas pressure washer series may be compact but it is capable of cleaning the toughest grime. Completely portable, this 4000 PSI unit features a 12V Beckett burner with a 4-pancake bottom-fired heat exchanger.
Pump: Direct drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader valve, adjustable · Forged brass manifold · Thermal relief valve
Engine: Performance proven engine with low-oil protection · 12V electric start (battery not included)
Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 15-inch pneumatic tires
Components: 1/2-inch schedule 80 pipe coil with 4-pancake bottom-fired heat exchanger · 12V Beckett burner · No.1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Adjustable thermostat · Hour meter · 250°F steam
Miscellaneous: Temperature rise 130°F/54°C above ambient, maximum outlet temperature is 210°F · Water output temperature is 250°F in "wet" steam
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 1/4-inch MEG and 1/4-inch MQC wet steam nozzle - 25° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
MSRP: $9,253.00
| PSI | 4000 |
| GPM | 3.7 |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Pump | General |
| Gas Tank Capacity | 1.61 gallons |
| Burner Fuel Tank Capacity | 10 gallons |
| Burner Fuel Consumption | 2.14 gph |
| BTU Per Hour | 299,600 |
| Drive Type | Direct Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 478.00 lbs. |
| Shipping Weight | 601.00 lbs. |
| Length | 57.50 in. |
| Width | 35.50 in. |
| Height | 59.50 in. |
Skid Feet HX-0171
Stationary applications
Stainless-Steel Coil Wrap HX-0273
Converts powder coated coil wrap to a stainless-steel coil wrap
