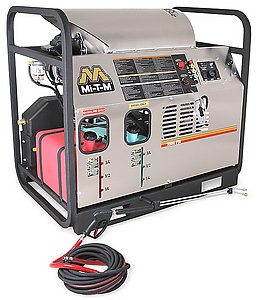

HDS-3505-0K6G

The HDS Series is the machine professionals go to for the heaviest cleaning applications.  This deluxe hot water pressure washer features a heavy-duty wrap around frame with stainless-steel panels for maximum durability.

Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable high pressure detergent injector

Engine: Performance-proven OHV engine with low-oil protection and electric start - battery not included

Frame: Heavy-duty powder coated steel square tube skid frame · Stainless-steel coil wrap, control panel and removable front panel

Components: Horizontal schedule 80 pipe coil · 120V/15-amp auxiliary GFCI outlet · 2900-watt generator for efficient power to the burner and controls · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel) · Three-way ball valve for inlet selection · Detergent and steam valves · Adjustable thermostat · Hour meter

Miscellaneous:  Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F

Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40°, plus wet steam and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off

MSRP: $13,523.00

Specifications

PSI 3500
GPM 4.7
Displacement/Engine 624cc Kohler CH620 OHV
Engine Fuel Tank Capacity 10.0 gallon
Burner Fuel Tank Capacity 10.0 gallon
Fuel Consumption 3.37 gph
BTU Per Hour 471,800
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 750.00 lbs.
Shipping Weight 854.00 lbs.
Length 50.00 in.
Width 34.00 in.
Height 46.00 in.

300°F Steam Upgrade HX-0100

Steam option lowers unit pressure to 350-PSI, 240°F rise above ambient with a maximum of 300°F

Four-Point Lifting Capability HX-0147

Allows unit to be lifted by crane

Trapping Unloader HX-0151

For longer hose runs and cleaning elevated areas

All Stainless-Steel Frame HX-0197

Converts powder coated painted frame to stainless-steel material

Clutch Drive Pump HX-0228

Stops the pump from spinning in bypass mode and helps to extend the life of the pump, changes GPM to 4.3 when added to the unit

Clutch Drive Pump HX-0261

Stops the pump from spinning in by-pass and helps extend the life of the pump, standard flow rate
