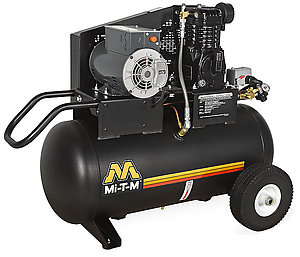

Designed for tough jobs with enough air capacity to run multiple air tools at once, this air compressor is easy to transport yet maintains the power needed for really big projects.
Compressor Pump: Quality cast iron single stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Stainless-steel braided discharge hose · Oil level sight indicator
Motor: Industrial UL-listed electric motor · Auto start/stop (continuous run optional) · Thermal overload motor protection
Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts · Convenient lifting handle · 10-inch flat-free tires
Components: Regulator and two gauges for tank and outlet pressure · 10-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Industrial grade pressure switch
MSRP: $2,430.00
| CFM @ 90 PSI | 9.2 |
| Horsepower/Motor | 2.0 HP, 120V, 18.8A |
| Compressor | Single stage, cast iron |
| Tank Size | 20-gallon |
| Plug Type | NEMA 5-20P |
| Mobility | Portable Air Compressors |
| Stage | Single Stage Air Compressors |
| Net Weight | 203.00 lbs. |
| Shipping Weight | 272.00 lbs. |
| Length | 40.00 in. |
| Width | 24.00 in. |
| Height | 32.00 in. |
Auto Drain/Regulator/Plastic Bowl AX-0002
Drains moisture from air system
Manual Drain/Regulator/Metal Bowl AX-0003
Drains moisture from air system
Dual Control AX-0008
Compressor can be operated in start/stop mode or continuous run where pilot valve exhausts air to atmosphere
Stationary Kit AX-0027
Converts the portable model to a stationary model, removes the wheels and adds the stationary leg
