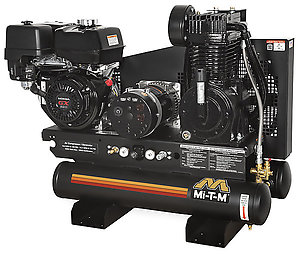

Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.
Compressor Pump: Quality cast iron two stage compressor · Durable stainless-steel braided discharge hose for longer life · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter
Generator: Brushless alternator · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 5% · 100% copper windings
Engine: Industrial Honda GX390 OHV engine
Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch flywheel for extra cooling and longer life · Quality pilot valve unloader · Belt tightening system pulls engine straight to ensure constant belt alignment
MSRP: $4,790.00
*Equipped with 150-PSI maximum rated regulator.
^Option AX-0064 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
| Net Weight | 365.00 lbs. |
| Shipping Weight | 465.00 lbs. |
| Length | 44.00 in. |
| Width | 22.00 in. |
| Height | 34.00 in. |
Lifting Hook AX-0028
For easier portability
Electric Start (battery box and cables included, battery not included) AX-0064
For easy starting
Electric Start (battery, box and cables not included) AX-0019
For easy starting
Idle Down AX-0068
When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
Remote Start/Choke IX-0055
Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
