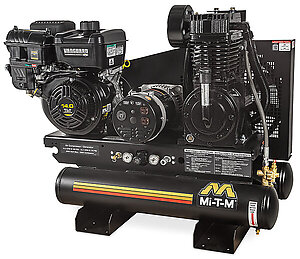

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Install a stationary unit in your service truck and you’ll have everything you need to operate air tools and power electrical tools.
Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · (2) 120V, 20A and (1) 240V, 20A receptacles
Frame: Powder coated 8-gallon twin tank receivers · 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader
MSRP: $4,828.00
*Equipped with 150-PSI maximum rated regulator.
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 408cc Vanguard OHV |
| Compressor | Two Stage |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
| Net Weight | 365.00 lbs. |
| Shipping Weight | 465.00 lbs. |
| Length | 44.00 in. |
| Width | 22.00 in. |
| Height | 34.00 in. |
Lifting Hook AX-0028
For easier portability
Electric Start (battery, box and cables not included) AX-0081
For easy starting
