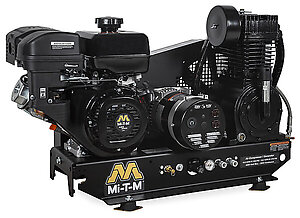

Increase your productivity by merging two vital pieces of equipment into one versatile machine. Ideal for every industrial application requiring both air and electrical power, you'll save space and save money with one machine.
Compressor Pump: Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Generator: Brushless alternator · Total Harmonic distortion (THD) less than 5% · 100% copper windings · Comes standard with (2) 120V, 20A and (1) 240V, 20A receptacles
Frame: 3/16-inch base plated to reduce vibration · 16-gauge powder coated two-piece belt guard
Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 12 or 16.5-inch fly wheel · Quality pilot valve unloader
MSRP: $4,064.00
*Equipped with 150-PSI maximum rated regulator.
^Option AX-0074 cannot be mounted at the factory but can be shipped with the unit for custom mounting. Consult factory for more information.
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 420cc Mi-T-M OHV |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
| Net Weight | 325.00 lbs. |
| Shipping Weight | 390.00 lbs. |
| Length | 47.00 in. |
| Width | 22.00 in. |
| Height | 28.00 in. |
Lifting Hook AX-0063
For easier portability
Electric Start (battery, box and cables not included) AX-0073
For easy starting
Electric Start (battery box and cables included, battery not included) AX-0074
For easy starting
