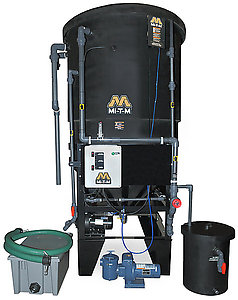

The mechanical oil/water separator systems are designed to remove free oils before discharging to your sanitary sewer. The oil/water separators will reduce the amount of suspended solids while removing hydrocarbons to meet local sanitary sewer discharge requirements.
The WCL Series offers the following features:
·600-gallon cone-shaped tank for effective settling and easy handling of solids
·1.0 HP surface-mount sump pump
·Solids separation chamber with bag filter and decanting
·Oil skimmer and decanter for easy handling of oil
·CSA approved control panel which meets the requirements of the US and Canadian standards for an Industrial Control Panel
·CSA listed NEMA-4 rated corrosion-proof control panel for safe and reliable operation (WCL-30D-0M10 only)
·Ozone generator for a "quick kill" of live bacteria on contract (WCL-30D-0M10 only)
The WCL Series is perfect for the following applications:
·Rental yards
·Heavy equipment dealers
·Trucking facilities
·Truck rental fleets
·Diesel repair facilities
·Forklift washing operations
·Aircraft maintenance and restoration
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders and manufacturers
·Military bases
·Golf courses
Models Available:
WCL-30S-0M10*+ 230V, 1Ø, 8.0A 73 sq. ft. oil coalescing area 725 lbs. ship weight
WCL-30D-0M10^ 230V, 1Ø, 13.0A 425 sq. ft. oil coalescing area 980 lbs. ship weight
*Float consists of 230V plug
+Control panel not included
^Ozone is included
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
| Flow Rate | 0-30 GPM |
| Clarifier Tank | 600 Gallons |
| Net Weight | 0.00 lbs. |
| Shipping Weight | 980.00 lbs. |
| Length | 63.00 in. |
| Width | 75.00 in. |
| Height | 106.00 in. |
