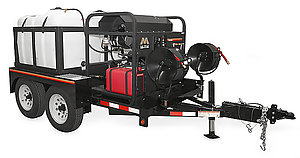

Mi-T-M Dual Axle Trailers are fully integrated and self-contained systems that are designed with a large supply tank for working at remote sites where water is not accessible in. Customize to fit your application needs with a high quality Mi-T-M pressure washer to get large jobs done quickly wherever you may need to work.
For the ultimate in portability: Purchase a single-axle trailer unit, add reliable Mi-T-M equipment to suit your application, and you are ready for the next job! Trailer units are used by heavy construction contractors, factories, well drillers, mines, military bases, road builders, contract cleaners, shipyards, municipalities and food services.
Features: Swivel jack with pad · 2-inch ball hitch · Rubber mounted sealed lights · Tanks are enclosed in a powder coated steel frame · Will fit all Mi-T-M belt-driven pressure washers · Aluminum treadplate steps for access to water tank · Storage area located under the water tanks · (2) 200-gallon water tanks are plumbed together
Accessories: Pressure washers · Hose reels · Backflow preventers · Trailer tank bypass · Trailer hitches
| Water Tank | (2) 200-gallon |
| Brakes | Electric |
| Coupler | 2in. |
| Tires | (4) ST205-75R 15in. |
| Axles | (2) 3,500 lb. |
| Storage Area | 5ft.x4ft.x12in. |
| Trailer Deck Plate | .25in. solid steel |
| Angle Frame | 3in.x4.25in. |
| Trailer Bed Dimensions | 5ft.x8.5ft. |
| Net Weight | 7000.00 lbs. |
| Shipping Weight | 7000.00 lbs. |
| Length | 101.00 in. |
| Width | 60.00 in. |
| Height | 72.00 in. |
High Pressure Hose Reel - 16-Inch TX-0002
Includes 16-inch hose reel with jumper hose and mounting bracket
Low Pressure Hose Reel - 16-Inch TX-0003
Includes 16-inch hose reel with mounting bracket and plumbing; for use with AW-9000-0003 and AW-9000-0004 trailers
Trailer Tank Bypass TX-0005
For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer
·Removes the float system, while adding the necessary plumbing
·Water bypasses back to water tank
High Pressure Hose Reel - 13-Inch TX-0001
Includes 13-inch hose reel with jumper hose and mounting bracket
Trailer Hitch TX-0010
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware
·Adjustable trailer coupler hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball - all to ensure a quick, easy and secure hook-up
Deluxe Trailer Option TX-0014
For use on AW-9000-0003 and AW-9000-0004 trailers with a HS Series pressure washer
·Adds a ball valve, trailer tank bypass and low pressure hose reel to the trailer
Trailer Hitch TX-0019
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware
·Lunette ring hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers
·3-inch integrated lunette ring for use with pintle hitches
