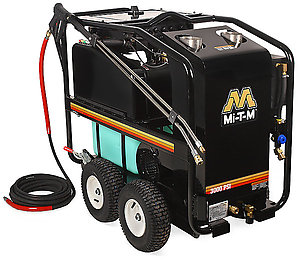

The DHS Series of belt driven hot water pressure washers are ideal for cleaning applications requiring 20 or more hours of use a week. Recommended for heavy, consistent cleaning applications, this model is great for industrial and commercial jobs where you need to tackle nasty grime, oil and dirt.
Pump: Belt drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires
Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
MSRP: $10,445.00
| PSI | 3000 |
| GPM | 3.5 |
| Horsepower/Motor | 8.0 HP, 230V, 1Ø, 36.0A |
| Pump | General |
| Plug Type | NEMA 6-50P |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Consumption | 2.10 gph |
| BTU Per Hour | 294,000 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 607.00 lbs. |
| Shipping Weight | 737.00 lbs. |
| Length | 49.50 in. |
| Width | 28.00 in. |
| Height | 40.50 in. |
Auto Start/Stop HX-0070
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
Auto Start/Stop - Steam HX-0072
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
Auto Start/Stop - CAD Cell HX-0074
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Monitors burner for proper ignition
Auto Start/Stop - Steam - CAD Cell HX-0076
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart; Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; Monitors burner for proper ignition
Skid Feet HX-0088
Stationary applications
Hour Meter HX-0161
Displays the number of hours unit has been in operation
