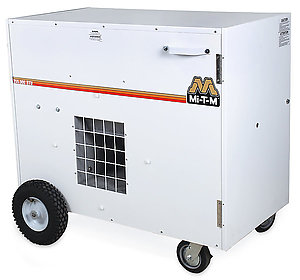

Available in both propane and natural gas, the Elite Series directional heaters are ductable and great for large or small area applications. Providing worry-free heating or air circulation for wide areas, the Elite Series portable heaters are perfect for tents, party applications and construction sites.
Frame: Durable powder coated outer casing and side lifting handles
Components: Thermostat control with 20-foot cord · 15-foot hose and regulator assembly · Independent fan and burner controls for simple operation · Totally enclosed flame · Electronic ignition · Operates as a fresh air circulator or a heater
Specifications subject to change without notice. Use in accordance with any and all state or local codes, regulations and /or ordinances.
Please see heater "Owner's Manual" included with each heater for a complete list of important safety information. These specifications are estimates only.
Important Notes:
·Not for use in residential living area or inadequately ventilated areas
·Proper ventilation required during operation
·Extremely hot during operation. Keep children, animals and all combustible objects away from heater.
^Natural gas regulator is required to run heater on natural gas, for gas supply pressures between 1/2 and 5 lb. of pressure (Part #68-5009). Available as an accessory.
| Heat Output | 355,000 BTU |
| Hot-Air Flow | 2,600 CFM |
| Fuel | Propane / Natural Gas |
| Fuel Consumption | 16.2 lbs./hr. / 350 cu. ft./hr. |
| Electrical Requirements | 115V, 60Hz, 1Ø |
| Amps (Starting/Cont.) | 21.0/9.0 Amps |
| Suggested Tank Size | 200 lb. |
| Inlet Gas Pressure | 11-inch WC-propane / 8.5-inch WC-nat. gas |
| Temperature Rise (above ambient) | 190°F-propane / 170°F-nat. gas |
| Dual-fuel Heater | Yes, natural gas and propane |
| Heat Source | Propane/Natural Gas |
| Net Weight | 317.00 lbs. |
| Shipping Weight | 350.00 lbs. |
| Length | 46.00 in. |
| Width | 32.50 in. |
| Height | 42.00 in. |
