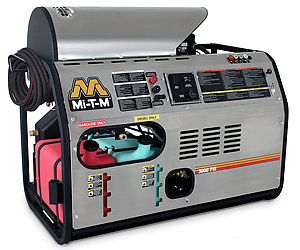

The most versatile of all hot water pressure washers, these compact skids are extremely portable and can fit through a 30-inch doorway. Perfect for agriculture and construction applications where mobility is a must.
Pump: Belt drive triplex piston General pump · Low pressure detergent injector
Engine: Performance-proven gasoline engine with electric start - battery not included
Frame: Powder coated steel square tube skid frame · Stainless-steel removable front panel · Optional wheel kit with locking tire brake, four tires and solid steel threaded axles
Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · 12V Beckett burner - no need for a generator - battery not included · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Adjustable thermostat · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
MSRP: $9,829.00
| PSI | 3000 |
| GPM | 3.9 |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Engine Fuel Tank Capacity | 1.7 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Consumption | 2.45 gph |
| BTU Per Hour | 343,000 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 566.00 lbs. |
| Shipping Weight | 685.00 lbs. |
| Length | 53.50 in. |
| Width | 28.75 in. |
| Height | 42.00 in. |
Hour Meter HX-0156
Displays the number of hours unit has been in operation
250°F Steam HX-0176
Increases outlet temperature to 250°F
High Pressure Chemical (K7) HX-0220
Adjustable high pressure chemical, includes float tank
Trapping Unloader HX-0225
For longer hose runs and cleaning elevated areas
Three-Way Ball Valve HX-0226
Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball lever valve
High Pressure Chemical (trapping unloader) HX-0221*
Adjustable high pressure chemical, includes float tank
*Consult factory before ordering this option.
