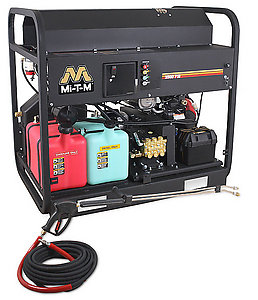

Just as powerful as the HDS Series, the HVS Series offers some of the same features at a more affordable option. Just as effective for tough cleaning applications with the same durable heavy-duty wrap around frame.
Pump: Belt drive triplex piston General pump with ceramic plungers · 80-mesh, high-volume, stainless-steel screen inlet water strainer
Engine: Performance-proven industrial gasoline engine with electric start - battery not included
Frame: Heavy-duty powder coated steel square tube skid frame
Components: No.1 or No.2 diesel or kerosene fired burner (Not approved for bio-fuel) · 2900-watt generator for efficient power to the burner and controls · Horizontal schedule 80 pipe coil · High quality fuel filter/water separator ensures clean fuel supply · Pressure relief valve protects against excessive system pressure · Polyethylene burner and engine fuel tanks
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and fixed detergent nozzle · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off
MSRP: $14,805.00
| PSI | 3000 |
| GPM | 7.8 |
| Displacement/Engine | 725cc Kohler CH730 OHV |
| Engine Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Consumption | 3.67 gph |
| BTU Per Hour | 513,800 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 854.00 lbs. |
| Shipping Weight | 934.00 lbs. |
| Length | 50.00 in. |
| Width | 34.00 in. |
| Height | 46.00 in. |
Three-Way Ball Valve HX-0130
Allows pressure washer to be operated from garden hose/float tank or trailer supply tank by adjusting ball valve lever
Adjustable Thermostat HX-0145
Operator is able to adjust outlet water temperature between 86°F-248°F
Hour Meter HX-0146
Displays the number of hours unit has been in operation
Four-Point Lifting Capability HX-0147
Allows unit to be lifted by crane
Adjustable Detergent Valve HX-0148*
Supplies soap injection through the high pressure pump while spraying; pressure washers with trapping unloader only
*Requires trapping unloader. Consult factory before ordering this option.
Stainless-Steel Frame HX-0198
Converts powder coated painted frame to stainless-steel material
Dual Gun HX-0202
Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
Clutch Drive Pump HX-0263
Stops the pump from spinning in by-pass and helps extend the life of the pump, standard flow rate
