HEO-2004-0E3G

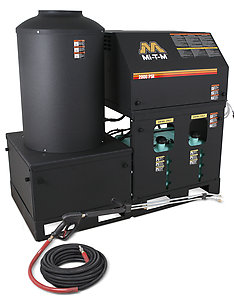

If you are looking for a wash bay system this the equipment for you.  This efficient hot water pressure washer is set up as a stationary unit with removable side panels for easy maintenance.

Pump: Belt drive triplex piston General pump with ceramic plungers · Thermal relief valve · Adjustable high pressure detergent injector

Motor: Open drip-proof electric motor with manual thermal overload protection

Frame: Powder coated steel frame and removable side panels

Components: 1/2-inch schedule 80 pipe coil with 5-pancake heat exchanger · 10-inch draft diverter · On/Off burner, pump and motor switches · Pressure switch and over-pressure safety controls · 24V control system · Polyethylene float tank (4-gallon with in-line screen filter) · Adjustable thermostat

Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option) · Designed to run off an existing fuel tank (Optional fuel tanks available)

Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off

MSRP: $9,315.00

Specifications

PSI 2000
GPM 4.2
Horsepower/Motor 6.0 HP, 230V, 3Ø, 17.6A
BTU Per Hour 386,400
Drive Type Belt Drive Pressure Washers
Mobility Stationary Pressure Washers
Water Temperature Hot Water Pressure Washers

Weights & Dimensions

Net Weight 724.00 lbs.
Shipping Weight 844.00 lbs.
Length 56.50 in.
Width 29.00 in.
Height 49.75 in.

Hour Meter HX-0106

Displays number of hours unit has been in operation

Time Delay Shutdown HX-0107*

Timer will shut unit off automatically when trigger gun is released and timer reaches setting
*Consult factory before ordering this option.

(1) Remote Station (auto start/stop N/A) HX-0108*

Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.

Additional Remotes (up to 3) HX-0110

Additional remotes that may be added to unit after the first remote is installed

Auto Start/Stop HX-0111

When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart

K7 Unloader, Flow Activated (auto start/stop N/A) HX-0112

Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released.

Stainless-Steel Access Panels HX-0115

Converts powder coated painted access panels to stainless-steel material

Stainless-Steel Coil Wrap HX-0116

Converts powder coated painted coil wrap to stainless-steel material

Painted Box Kit HX-0117

Adds painted side and end panels

Painted Stainless-Steel Box Kit HX-0118

Adds stainless-steel side panels and painted end panels

250°F Steam HX-0120

Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure

Auto Start/Stop and First Remote HX-0124

When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection

Elevated Float Tank, 4.0 GPM HX-0216

Float tank is located at the back of the unit

(2) 10-Gallon Fuel Tanks HX-0218*

Adds 20-gallon fuel capacity to units versus hose hook-up to fuel supply
*Consult factory before ordering this option.

Time Delay Shutdown and First Remote HX-0223*

Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.
