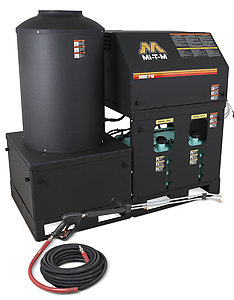

If you are looking for a wash bay system this the equipment for you. This efficient hot water pressure washer is set up as a stationary unit with removable side panels for easy maintenance.
Pump: Belt drive triplex piston General pump with ceramic plungers · Thermal relief valve · Adjustable high pressure detergent injector
Motor: Open drip-proof electric motor with manual thermal overload protection
Frame: Powder coated steel frame and removable side panels
Components: 1/2-inch schedule 80 pipe coil with 5-pancake heat exchanger · 10-inch draft diverter · On/Off burner, pump and motor switches · Pressure switch and over-pressure safety controls · 24V control system · Polyethylene float tank (4-gallon with in-line screen filter) · Adjustable thermostat
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F (250°F/121°C outlet temperature with steam option) · Designed to run off an existing fuel tank (Optional fuel tanks available)
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose · Adjustable pressure insulated dual lance with fixed detergent nozzle · Professional-grade insulated trigger gun with safety lock-off
MSRP: $10,896.00
| PSI | 3000 |
| GPM | 4.8 |
| Horsepower/Motor | 10.0 HP, 230V, 1Ø, 45.6A |
| BTU Per Hour | 428,400 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Stationary Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 758.00 lbs. |
| Shipping Weight | 878.00 lbs. |
| Length | 56.50 in. |
| Width | 29.00 in. |
| Height | 49.75 in. |
Hour Meter HX-0106
Displays number of hours unit has been in operation
Time Delay Shutdown HX-0107*
Timer will shut unit off automatically when trigger gun is released and timer reaches setting
*Consult factory before ordering this option.
(1) Remote Station (auto start/stop N/A) HX-0108*
Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.
Additional Remotes (up to 3) HX-0110
Additional remotes that may be added to unit after the first remote is installed
Auto Start/Stop HX-0111
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
K7 Unloader, Flow Activated (auto start/stop N/A) HX-0112
Converts pressure trapping unloader system to flow actuated K7 unloader. Pressure is not trapping in the discharge line when trigger is released.
Dual Gun HX-0114
Two guns may be sprayed at the same time, flow is divided between the two guns while each operator maintains equal system pressure
Stainless-Steel Access Panels HX-0115
Converts powder coated painted access panels to stainless-steel material
Stainless-Steel Coil Wrap HX-0116
Converts powder coated painted coil wrap to stainless-steel material
Painted Box Kit HX-0117
Adds painted side and end panels
Painted Stainless-Steel Box Kit HX-0118
Adds stainless-steel side panels and painted end panels
250°F Steam HX-0122
Steam option adjusts unloader valve counter-clockwise increasing outlet temperature to 250°F while lowering system pressure
Auto Start/Stop and First Remote HX-0124
When trigger gun is released timer will turn unit off, when trigger gun is pulled unit will restart; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
Elevated Float Tank, 5.0 GPM HX-0217
Float tank is located at the back of the unit
(2) 10-Gallon Fuel Tanks HX-0218*
Adds 20-gallon fuel capacity to units versus hose hook-up to fuel supply
*Consult factory before ordering this option.
Time Delay Shutdown and First Remote HX-0223*
Timer will shut unit off automatically when trigger gun is released and timer reaches setting; Adds control box which may be mounted away from unit to control on/off, burner and soap injection
*Consult factory before ordering this option.
