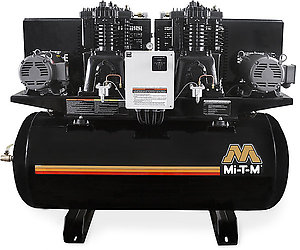

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.
Compressor Pump: Two stage cast iron · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor: Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard
Components: 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve
MSRP: $14,610.00
| CFM @ 175 PSI | 46.4 |
| Horsepower/Motor | 7.5 HP, 200V, 3Ø, 46.0A |
| Compressor | Two Stage, cast iron |
| Tank Size | 120-gallon |
| Mobility | Stationary Air Compressors |
| Stage | Two Stage Air Compressors |
| Net Weight | 921.00 lbs. |
| Shipping Weight | 1000.00 lbs. |
| Length | 74.00 in. |
| Width | 26.50 in. |
| Height | 58.00 in. |
