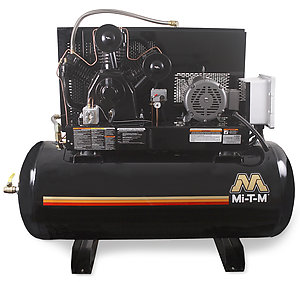

ADS-20310-120HM

Loaded with standard features, the M Series air compressors are available in many motor configurations.  Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.

Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose

Motor: Low RPM industrial electric motor · Magnetic start for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard · Vibration isolator pads protect the tank from stress

Components: Large flywheel for extra cooling and longer life · ASME safety valves · Pressure gauge · Tank shut-off valve · Tank drain valve automatically drains liquid from air receiver · Intake filter/silencer · Belt tightening system pulls engine straight to ensure constant belt alignment · Hour meter displays the number of hours compressor has been in operation · Low oil shutdown shuts unit down when oil falls below adequate levels · Air-cooled after cooler removes up tp 65% fo moisture and drops temperature within 10-degrees of ambient

MSRP: $11,120.00

Specifications

CFM @ 175 PSI 34.2
Horsepower/Motor 10.0 HP, 200V, 3Ø, 30.8A
Compressor Two Stage, cast iron
Tank Size 120-gallon
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 811.00 lbs.
Shipping Weight 890.00 lbs.
Length 74.00 in.
Width 26.50 in.
Height 58.00 in.
