ADS-46310-120H

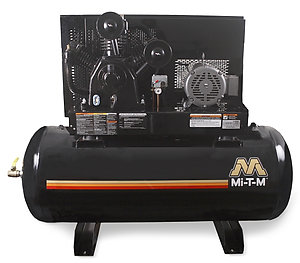

The horizontal 120-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility.  Powerful and efficient, they are designed to maximize production.

Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose

Motor: Industrial low RPM motor with magnetic start for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard · Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank

Components: Large flywheel for extra cooling and longer life · ASME safety valves · Tank pressure gauge · Tank shut-off valve · Intake filter/silencer · Hour meter · Belt tightening system pulls engine straight to ensure constant belt alignment

MSRP: $9,340.00

Specifications

CFM @ 175 PSI 34.2
Horsepower/Motor 10.0 HP, 460V, 3Ø, 13.4A
Compressor Two Stage, cast iron
Tank Size 120-gallon
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 785.00 lbs.
Shipping Weight 904.00 lbs.
Length 74.00 in.
Width 26.50 in.
Height 58.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

After Cooler IX-0003

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

Electric Tank Drain IX-0006

Automatically drains liquid from compressor tank

Low Oil Monitor IX-0036

Low oil sensor does not allow unit to start when oil levels fall below an adequate level

Pneumatic Tank Drain IX-0032

Automatically drains liquid from compressor tank
