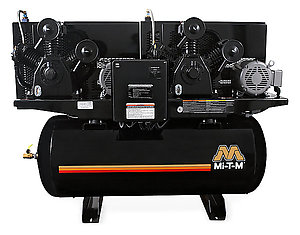

The horizontal 120-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.
Compressor Pump: Two stage cast iron · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor: Industrial low RPM motor · Magnetic starter for thermal overload protection
Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard
Components: 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve · Hour meter
MSRP: $20,720.00
CFM @ 175 PSI | 93.0 |
Horsepower/Motor | 15.0 HP, 200V, 3Ø, 88.0A |
Compressor | Two Stage, cast iron |
Tank Size | 120-gallon |
Mobility | Stationary Air Compressors |
Stage | Two Stage Air Compressors |
Net Weight | 1471.00 lbs. |
Shipping Weight | 1550.00 lbs. |
Length | 74.00 in. |
Width | 26.50 in. |
Height | 58.00 in. |
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Electric Tank Drain IX-0006
Automatically drains liquid from compressor tank
Low Oil Monitor IX-0036
Low oil sensor does not allow unit to start when oil levels fall below an adequate level
Pneumatic Tank Drain IX-0032
Automatically drains liquid from compressor tank
After Cooler IX-0035
Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
