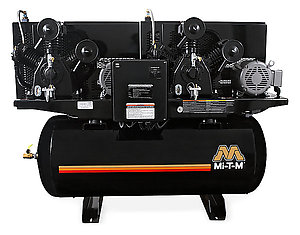

Loaded with standard features, the M Series air compressors are available in many motor configurations. Offered with vertical or horizontal tank options, this series come compete to meet the most demanding industrial applications.
Compressor Pump: Two stage cast iron · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
Motor: Magnetic start for thermal overload protection
Frame: Powder coated ASME coded 120-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed heavy-duty belt guard
Components: 3 position switch - compressor 1 (lead motor pump), automatic alternating and compressor 2 (lead motor pump) · ASME safety valves · Tank pressure gauge · Large fly wheel · Intake filter/silencer · Tank shut-off valve
MSRP: $22,625.00
CFM @ 175 PSI | 93.0 |
Horsepower/Motor | 15.0 HP, 460V, 3Ø, 38.0A |
Compressor | Two Stage, cast iron |
Tank Size | 120-gallon |
Mobility | Stationary Air Compressors |
Stage | Two Stage Air Compressors |
Net Weight | 1571.00 lbs. |
Shipping Weight | 1650.00 lbs. |
Length | 74.00 in. |
Width | 26.50 in. |
Height | 58.00 in. |
