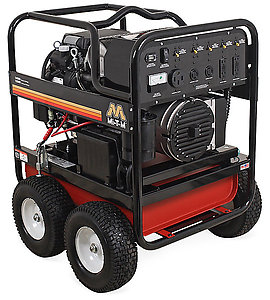

The Mi-T-M 14000-watt generator is a virtual power plant. Built for industrial applications with the portability to move from one job to the next, this generator will never let you down. It's the perfect tool for professional contractors and houses.
Engine: Honda GX630 OHV low oil shutdown engine with electric start (battery included) · Idle control
Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings
Frame: Reinforced 1 1/4-inch powder coated steel tube frame with center balanced lifting hook · Solid steel threaded axles · Locking tire brake · 13-inch flat-free tires
Components: Easy-to-read fuel gauge · Voltmeter/hour meter · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected
MSRP: $10,606.00
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
| Maximum AC Output | 14000 watts |
| Rated AC Output | 12000 watts |
| Displacement/Engine | 688cc Honda GX630 OHV with electric start - battery included |
| Alternator | Brushless 120V/240V, 60Hz |
| Maximum Amps (120V/240V) | 116.7/58.3 |
| Continuous Amps (120V/240V) | 100.0/50.0 |
| Receptacles | (2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 30A twist lock; (1) 120V/240V 50A |
| Circuit Breakers | (2) 20A toggle circuit breaker, single pole; (1) 30A toggle circuit breaker, single pole; (1) 30A toggle circuit breaker, double pole; (1) 50A toggle circuit breaker, double pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 77.5 |
| Fuel Capacity | 13.2 gallon |
| Run Time (at full load) | 8.0 hours |
| Idle Control | Yes |
| Net Weight | 508.00 lbs. |
| Shipping Weight | 568.00 lbs. |
| Length | 31.50 in. |
| Width | 30.50 in. |
| Height | 37.50 in. |
Skid Feet GX-0003
For stationary applications
50-Amp Twist Lock Receptacle GX-0005
Marine receptacle for routine marine applications
