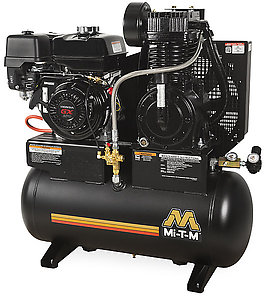

This model features a powerful and efficient two stage compressor designed to maximize productivity. The versatility of the 20-gallon air compressor offers extra air storage and comes in stationary or portable models.
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head and cylinder for extended durability · Large canister intake filter · Stainless-steel braided discharge hose · Oil level sight indicator
Engine: Industrial Honda GX270 OHV engine (electric start optional) · Engine oil drain · Pneumatic idle control to conserve fuel
Frame: Powder coated ASME coded 20-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Components: Regulator and two gauges for tank and outlet pressure · 16.5-inch fly wheel for extra cooling and longer life · Manual drain valves for proper maintenance · Belt tightening system pulls engine straight to ensure constant belt alignment · Quality pilot valve unloader
MSRP: $3,749.00
*Equipped with 150-PSI maximum rated regulator.
| CFM @ 175 PSI | 17.2 |
| Displacement/Engine | 270cc Honda GX270 OHV |
| Compressor | Two Stage, cast iron |
| Tank Size | 20-gallon |
| Engine Idle Control | Pneumatic |
| Mobility | Stationary Air Compressors |
| Stage | Two Stage Air Compressors |
| Net Weight | 306.00 lbs. |
| Shipping Weight | 356.00 lbs. |
| Length | 37.00 in. |
| Width | 18.00 in. |
| Height | 38.00 in. |
Manual Drain/Regulator/Metal Bowl AX-0003
Drains moisture from air system
Electric Start (battery and cables not included) AX-0015
For easy starting
Electric Start (battery and cables included) AX-0017
For easy starting
Remote Start/Choke IX-0055
Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
