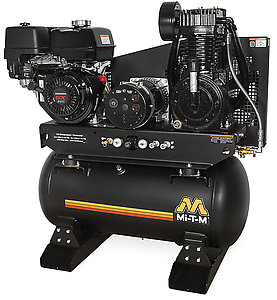

Featuring an industrial air compressor and generator combination, this machine is durable even in the toughest environments. Whether it's oil fields or farm fields, this versatile machine will deliver enough power to get the job done.
Compressor Pump: Quality cast iron two stage compressor · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Large canister intake filter · Durable stainless-steel braided discharge hose for longer life
Engine: Honda GX390 OHV engine
Generator: Brushless alternator · Industrial 4000-watt generator with (2) 120V, 20A and (1) 240V, 20A receptacles · Total harmonic distortion (THD) less than 6% · 100% copper windings
Frame: Powder coated ASME coded 30-gallon receiver tank · 3/16-inch base plate to reduce vibration · 14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
MSRP: $5,442.00
*Equipped with 150-PSI maximum rated regulator.
| CFM @ 90 PSI | 16.4 |
| CFM @ 175 PSI | 15.7 |
| Alternator Wattage/Maximum Output | 4000 watts |
| Alternator Wattage/Continous with Compressor On-Load | 2300 watts |
| Alternator Wattage/Continous with Compressor Off-Load | 3500 watts |
| Receptacles | (2) NEMA 5-20R, (1) NEMA L6-20R |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Compressor | Two Stage, cast iron |
| Mobility | Stationary Air Compressor/Generators |
| Stage | Two Stage Air Compressor/Generators |
| Net Weight | 450.00 lbs. |
| Shipping Weight | 550.00 lbs. |
| Length | 40.00 in. |
| Width | 24.50 in. |
| Height | 45.00 in. |
Lifting Hook AX-0063
For easier portability
Electric Start (battery box and cables included, battery not included) AX-0064
For easy starting
Electric Start (battery, box and cables not included) AX-0019
For easy starting
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Idle Down AX-0068
When activated it automatically throttles down engine to conserve fuel, includes electric start - battery not included
Battery Tray, Box and 2-Foot of Cables Included AX-0070
Attaches to engine side of unit
Remote Start/Choke IX-0055
Remote start/choke; 6-foot wire extension for key switch; you will also need to order electric start option, AX-0015
