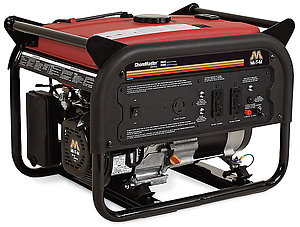

3600 Watt Gasoline GEN-3600-0MM0

GEN-3600-0MM0

Featuring 3600, 6000 and 8000-watt generators, the ChoreMaster® Series come with a Mi-T-M OHV engine and are designed to provide maximum power for contractors and electrical back-up for power outages.

Engine: Mi-T-M OHV engine low-oil shutdown engine · Recoil starting system

Alternator: Brushed 120V alternator · Copper and aluminum windings · Total harmonic distortion (THD) less than 6%

Frame: Low profile, compact design · Wraparound frame with 1-inch steel tubing

Components: Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles · Large low-tone mufflers · Engine on/off switch · Fuel shut-off valve · DC/battery charging

MSRP: $1,220.00

Specifications

Maximum AC Output 3600 watts
Rated AC Output 3000 watts
Displacement/Engine 212cc Mi-T-M OHV
Alternator Brushed 120V, 60Hz
Maximum Amps (120V/240V) 30.0
Continuous Amps (120V/240V) 25.0
Receptacles (2) 120V 20A GFCI duplex; (1) 120V 30A twist lock
Circuit Breakers (1) Main circuit breaker; (2) 20A circuit breaker, single pole; (1) 10A DC breaker
Rated Speed 3600 RPM
Fuel Capacity 4.0 gallon
Run Time (at full load) 8.5 hours
Idle Control No
Wheel Kit No

Weights & Dimensions

Net Weight 102.00 lbs.
Shipping Weight 134.00 lbs.
Length 24.90 in.
Width 17.60 in.
Height 17.90 in.
