AM1-HE02-05M

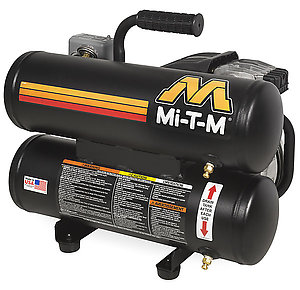

Easy to use yet big on performance, this 5-gallon air compressor is the perfect tool for any jobsite where electricity is accessible.  Perfect for finishing work, it provides enough power for nail guns and drills.

Compressor Pump: Quality single stage compressor · Stainless-steel braided discharge hose · Oil lubricated aluminum crankcase · Aluminum head for heat dissipation · Cast iron cylinder · Inlet air filter

Motor: 120V single-phase 60-Hz. motor with 15-amp plug · Thermal overload motor protection

Frame: Compact and portable twin tank design · Powder coated steel frame design · 5-gallon powder coated tank assembly · Protective pump/motor housing · Rubber handle for cushioned grip · Rubber isolators

Components: Regulator and two gauges for tank and outlet pressure · Drain valves and pressure relief valve · Start/stop control set at 95 to 125-PSI · Industrial interchange quick connect fittings

MSRP: $990.00

Specifications

CFM @ 90 PSI 4.2
Horsepower/Motor 2.0 HP, 120V, 15.0A
Compressor Single Stage
Cylinder Cast Iron
Tank Size 5-gallon
Plug Type NEMA 5-15P
Mobility Stationary Air Compressors
Stage Single Stage Air Compressors

Weights & Dimensions

Net Weight 61.00 lbs.
Shipping Weight 70.00 lbs.
Length 20.50 in.
Width 15.50 in.
Height 17.50 in.
