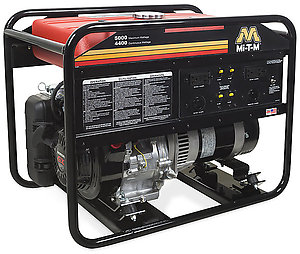

Perfect for powering a multitude of tools on any jobsite, the 3000-watt and 5000-watt generators were designed with contractors in mind. And, the long run times mean you don’t have to take a refuel break.
Engine: Honda GX270 OHV low-oil shutdown engine
Alternator: Brushless 120V/240V alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings
Frame: Low profile, compact design · Angled isolator design features four neoprene isolators · Heavy-duty wraparound frame with 1-inch powder coated steel tubing
Components: Easy-to-read fuel gauge · Fuel shutoff valve · Full power switch · Fuel tanks are powder coated outside, zinc-plated inside to prevent rusting · Heavy-duty industrial air cleaners hold up under extreme conditions · Large low-tone mufflers to reduce noise to lowest level possible · Easy-access and protected control panel with magnetic circuit breakers and GFCI-protected receptacles
Miscellaneous: USDA/USFS-approved spark arrestors · Circuit breaker protected
Noise level tested at seven meters (75% load). Rating represents minimum noise level rating.
MSRP: $3,520.00
| Maximum AC Output | 5000 watts |
| Rated AC Output | 4400 watts |
| Displacement/Engine | 270cc Honda GX270 OHV |
| Alternator | Brushless 120V/240V, 60Hz |
| Maximum Amps (120V/240V) | 41.7/20.8 |
| Continuous Amps (120V/240V) | 36.7/18.3 |
| Receptacles | (2) 120V 20A GFCI duplex; (1) 120V 30A twist lock; (1) 120V/240V 20A twist lock |
| Circuit Breakers | (2) 20A toggle circuit breaker, single pole; (1) 20A toggle circuit breaker, double pole; (1) 30A toggle circuit breaker, single pole |
| Rated Speed | 3600 RPM |
| Decibel Rating | 73.8 |
| Fuel Capacity | 5.7 gallon |
| Run Time (at full load) | 6.8 hours |
| Fuel Shut-Off Valve | Yes |
| Fuel Gauge | Yes, easy-to-read |
| Full Power Switch | Yes |
| Net Weight | 176.00 lbs. |
| Shipping Weight | 198.00 lbs. |
| Length | 29.00 in. |
| Width | 19.75 in. |
| Height | 22.50 in. |
Hour Meter GX-0004
Displays number of hours the unit has been in operation
