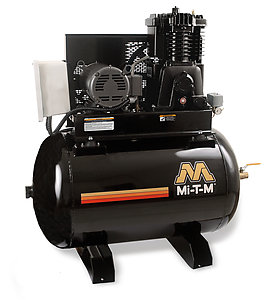

The horizontal 80-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production
Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose
Motor: Industrial low RPM motor with magnetic start for thermal overload protection
Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard · Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank
Components: Large flywheel for extra cooling and longer life · ASME safety valves · Tank pressure gauge · Tank shut-off valve · Intake filter/silencer · Hour meter · Belt tightening system pulls engine straight to ensure constant belt alignment
MSRP: $6,380.00
| CFM @ 175 PSI | 18.0 |
| Horsepower/Motor | 5.0 HP, 200V, 3Ø, 16.1A |
| Compressor | Two Stage, cast iron |
| Tank Size | 80-gallon |
| Mobility | Stationary Air Compressors |
| Stage | Two Stage Air Compressors |
| Net Weight | 514.00 lbs. |
| Shipping Weight | 585.00 lbs. |
| Length | 52.00 in. |
| Width | 26.50 in. |
| Height | 53.00 in. |
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
Electric Tank Drain IX-0006
Automatically drains liquid from compressor tank
Low Oil Monitor IX-0008
Low-oil sensor does not allow unit to start when oil levels fall below an adequate level
After Cooler IX-0052
Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
Pneumatic Tank Drain IX-0056
Automatically drains liquid from compressor tank; unit cannot include an after cooler
Pneumatic Tank Drain IX-0057
Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
