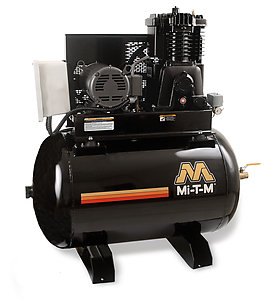

ACS-23175-80H

The horizontal 80-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility.  Powerful and efficient, they are designed to maximize production

Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose

Motor: Industrial low RPM motor with magnetic start for thermal overload protection

Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard · Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank

Components: Large flywheel for extra cooling and longer life · ASME safety valves · Tank pressure gauge · Tank shut-off valve · Intake filter/silencer · Hour meter · Belt tightening system pulls engine straight to ensure constant belt alignment

MSRP: $5,438.00

Specifications

CFM @ 175 PSI 23.5
Horsepower/Motor 7.5 HP, 230V, 1Ø, 31.0A
Compressor Two Stage, cast iron
Tank Size 80-gallon
Mobility Stationary Air Compressors
Stage Two Stage Air Compressors

Weights & Dimensions

Net Weight 594.00 lbs.
Shipping Weight 665.00 lbs.
Length 52.00 in.
Width 26.50 in.
Height 53.00 in.

Vibration Isolator Pads IX-0001

Isolators protect the unit from vibration during use

Electric Tank Drain IX-0006

Automatically drains liquid from compressor tank

Low Oil Monitor IX-0008

Low-oil sensor does not allow unit to start when oil levels fall below an adequate level

After Cooler IX-0052

Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient

Pneumatic Tank Drain IX-0056

Automatically drains liquid from compressor tank; unit cannot include an after cooler

Pneumatic Tank Drain IX-0057

Automatically drains liquid from compressor tank; you must also have IX-0052 after cooler option
