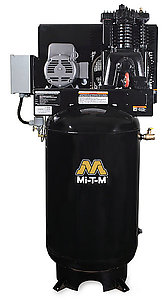

The vertical 80-gallon air compressors can be installed out of the way in service shops where compressed air is a required utility. Powerful and efficient, they are designed to maximize production.
Compressor Pump: Quality two stage cast iron pump · Splash lubricated cast iron crankcase to extend the hours of performance · Cast iron head for heat dissipation · Oil lever sight indicator · Stainless-steel braided discharge hose for easy maintenance - won’t fracture with vibration · Flexible pump drain hose
Motor: Industrial low RPM motor with magnetic start for thermal overload protection
Frame: Durable, professional, high gloss powder coat finish · ASME coded 80-gallon receiver tank · 3/16-inch base plate to reduce vibration · Powder coated totally enclosed belt guard · Tabbed design offers flexible installation, smooth operation and reduces vibration stress on tank
Components: Large flywheel for extra cooling and longer life · ASME safety valves · Tank pressure gauge · Tank shut-off valve · Intake filter/silencer · Hour meter · Belt tightening system pulls engine straight to ensure constant belt alignment
MSRP: $6,200.00
CFM @ 175 PSI | 18.0 |
Horsepower/Motor | 5.0 HP, 230V, 3Ø, 13.8A |
Compressor | Two Stage, cast iron |
Tank Size | 80-gallon |
Mobility | Stationary Air Compressors |
Stage | Two Stage Air Compressors |
Net Weight | 514.00 lbs. |
Shipping Weight | 585.00 lbs. |
Length | 33.00 in. |
Width | 25.00 in. |
Height | 73.00 in. |
Vibration Isolator Pads IX-0001
Isolators protect the unit from vibration during use
After Cooler IX-0002
Removes up to 65% of the moisture from discharged compressor air and drops the temperature within 10° of ambient
Electric Tank Drain IX-0006
Automatically drains liquid from compressor tank
Low Oil Monitor IX-0008
Low-oil sensor does not allow unit to start when oil levels fall below an adequate level
Pneumatic Tank Drain IX-0051
Automatically drains liquid from compressor tank
Pneumatic Tank Drain IX-0058
Automatically drains liquid from compressor tank; you must also have IX-0002 after cooler option
