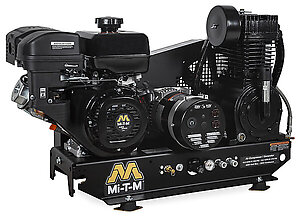

AG2-SV14-B

Ideal for jobsites and work trucks, the air compressor/generator combination units go a long way to increasing productivity. Install a stationary unit in your service truck and you’ll have everything you need to operate air tools and power electrical tools.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brushless alternator · Total harmonic distortion (THD) less than 5% · 100% copper windings · (2) 120V, 20A and (1) 240V, 20A receptacles

Frame: 3/16-inch base plate to reduce vibration · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16½-inch fly wheel · Quality pilot valve unloader

MSRP: $4,770.00

*Equipped with 150-PSI maximum rated regulator.

Specifications

CFM @ 90 PSI 16.4
CFM @ 175 PSI 15.7
Alternator Wattage/Maximum Output 4000 watts
Alternator Wattage/Continous with Compressor On-Load 2300 watts
Alternator Wattage/Continous with Compressor Off-Load 3500 watts
Receptacles (2) NEMA 5-20R, (1) NEMA L6-20R
Displacement/Engine 408cc Vanguard OHV
Compressor Two Stage
Mobility Stationary Air Compressor/Generators
Stage Two Stage Air Compressor/Generators

Weights & Dimensions

Net Weight 325.00 lbs.
Shipping Weight 390.00 lbs.
Length 47.00 in.
Width 22.00 in.
Height 28.00 in.

Lifting Hook AX-0063

For easier portability

Electric Start (battery box and cables included, battery not included) AX-0082

For easy starting

Electric Start (battery, box and cables not included) AX-0081

For easy starting
