Portable Gasoline
Belt Drive – Trailer-Mount Pressure Washer

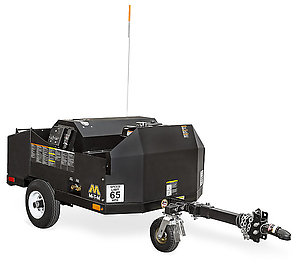

The compact design of the new Mi-T-M hot water mini trailer offers ease of transport without sacrificing powerful cleaning capabilities. This trailer package is engineered with a durable powder coated steel frame, a rear locking storage area and an industrial 4000 PSI belt-driven pressure washer with a 12V Beckett burner.
Pump: Belt drive triplex piston General pump with ceramic plungers · Adjustable stainless-steel and brass unloader valve · Forged brass manifold · Thermal relief valve
Engine: Performance proven Honda engine with low-oil protection · Remote engine start and choke · 12V electric start – battery not included
Frame: Reinforced powder coated steel frame · Locking rear storage area – 2.875 cubic feet · Sealed LED trailer lights · 2-inch ball hitch · Caster brake (Use when unhitched)
Components: ½-inch schedule 80 pipe coil with 4-pancake heat exchanger · 12V Beckett burner · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Engine and burner hour meters
Miscellaneous: Temperature rise 140°F/60°C above ambient
Safety Features: Removable safety flag for transportation and guidance when backing up · Recommended maximum speed is 65 mph · DOT approved and National Association of Trailer Manufacturers (NATM) certified trailer · 250°F high temperature safety limit switch
Unit Includes: Quick connect nozzles – 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire braided high pressure hose · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
MSRP: $16,980.00
Hot Water Mini Trailer in Action
| PSI | 4000 |
| GPM | 3.7 |
| Displacement/Engine | 389cc Honda GX390 OHV |
| Pump | General |
| Engine Fuel Tank Capacity | 1.61-gallons |
| Burner Fuel Tank Capacity | 10.0-gallons |
| Burner Fuel Consumption | 2.45 GPH |
| BTU Per Hour | 343,000 |
| Axle | 1,000 lbs. |
| Tires | (2) 4.80-8 8-inch bias ply |
| Net Weight | 1000.00 lbs. |
| Shipping Weight | 1000.00 lbs. |
| Length | 99.00 in. |
| Width | 43.50 in. |
| Height | 36.00 in. |
Trailer Hitch TX-0010
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware
·Adjustable trailer coupler hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball - all to ensure a quick, easy and secure hook-up
High Pressure Hose Reel TX-0020
12-inch hose reel, 100-foot maximum hose length
