Use these premium quality fiberglass pit components for creating the appropriate pre-treatment pit system for your wash water recycle or sewer discharge operations.
The different pit components are designed to:
·Effectively pre-treat wash water for treatment by an above-ground system
·Be easily installed by your contractor

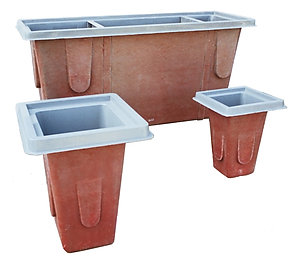

12-0074 3' x 9' x 4.5' Pit Size
3-stage collection pit, fiberglass
capacity 600-gallons, 480 lb. ship weight
12-0223 3' x 9' x 4.5' Pit Size
3'x9' baffleless pit, fiberglass
capacity 600-gallons, 480 lb. ship weight
12-0238 3' x 9' x 4.5' Pit Size
2-stage collection pit with single baffle, fiberglass
capacity 600-gallons, 480 lb. ship weight
12-0244 3' x 9' x 4.5’ Pit Size
3-stage collection pit with middle weir and third baffle, fiberglass, large solids settling area
capacity 600-gallons, 480 lb. ship weight
20-0635A01 Fits 3' x 9' Pit Size
Above-ground external brace kit, #12-0074
250 lb. ship weight
20-1505A01 Fits 3' x 9' Pit Size
Pit liner assembly, painted; 2 qty. are required
45 lb. ship weight
56-0032 Fits 3' x 9' Pit Size
Aluminum hinged diamond plate cover with 3 frame sections
100 lb. ship weight
RC-0001-0003 Fits 3' x 9' Pit Size
Brace kit for installation of 3-stage collection pit
200 lb. ship weight
RC-0018-0001* Fits 3' x 9' Pit Size
Steel grating for pit; 3,060 lb./ft.² uniform load rating
546 lb. ship weight
RC-0018-0002* Fits 3' x 9' Pit Size
Steel grating for pit with steel cover
680 lbs. ship weight
*May combine RC-0018-0001 and RC-0018-0002 to have both open and closed sections for the 3' x 9' pits.
Consult factory for more information.
12-0071 3' x 3' x 4.5' Pit Size
Catch basin, fiberglass
capacity 100-gallons, 190 lb. ship weight
20-0480A01 Fits 3' x 3' Pit Size
Steel grating for pit, 2 sections; 6,250 lb./ft.² uniform load rating, H-20 load rated
250 lb. ship weight
20-0733A01 Fits 3' x 3' Pit Size
Above-ground external brace kit
250 lb. ship weight
56-0031 Fits 3' x 3' Pit Size
Aluminum diamond plate cover and frame
30 lb. ship weight
RC-0001-0002 Fits 3' x 3' Pit Size
Brace kit for installation of 3'x3' pit
150 lb. ship weight
12-0073 2' x 2' x 3' Pit System
Sump pit, fiberglass
capacity 50-gallons, 92 lb. ship weight
20-0479A01 Fits 2' x 2' Pit Size
Steel grating for pit
100 lb. ship weight
56-0030 Fits 2' x 2' Pit Size
Aluminum diamond plate cover with aluminum frame
60 lb. ship weight
RC-0001-0001 Fits 2' x 2' Pit Size
Brace kit for installation of 2'x2' pit
75 lb. ship weight
Typical pre-treatment applications include:
·Rental yards
·Golf courses
·Heavy equipment dealers
·Trucking companies
·Military bases
·Truck rental fleets
·Diesel repair facilities
·Aircraft maintenance & restoration operations
·Shipyards
·Municipalities/State DOTs
·Oil fields
·Engine rebuilders & manufactureres
The Importance of a Proper Pit System:
Once equipment is washed, the untreated wash water flows into your pit system. A proper pit system for your application is the first step in proper wash water treatment and a critical element in any wash water recycle system.
Consult Mi-T-M Corporation or your local distributor to determine the pit system configuration that works best for your application.
Aeration Stick Assembly WX-0018
Prevents water from stagnitizing, includes regulator assembly, for aeration of pits
