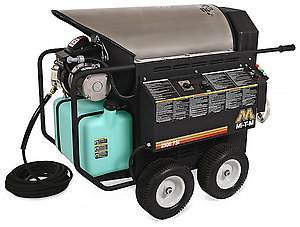

The belt driven HHB Series is designed for heavy-duty industrial cleaning jobs requiring hot water. It can easily handle the demanding jobs on construction jobsites, agricultural locations or commercial cleaning applications.
Pump: Belt drive triplex piston AR plunger pump · Adjustable high pressure detergent injector
Motor: Open drip-proof electric motor with thermal overload protection · 35-foot power cord
Frame: Wrinkle-finish powder coated steel frame assembly · 13-inch flat-free tires with rear tire brake
Components: Stainless-steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel) · Racor fuel/water separator · Adjustable thermostat · Polyethylene float tank with inlet filter screen · 10-gallon polyethylene fuel tank
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200ºF
Unit Includes: Quick connect nozzles - 0°, 15°, 25°, 40° and low pressure nozzle · 50-foot x 3/8-inch high pressure hose with quick connects · Adjustable pressure insulated dual lance · Insulated trigger gun with safety lock-off
MSRP: $8,245.00
| PSI | 2500 |
| GPM | 2.8 |
| Horsepower/Motor | 6.0 HP, 230V, 1Ø, 28.0A |
| Plug Type | NEMA 6-30P |
| Burner Fuel Tank Capacity | 10.0 gallon |
| Burner Fuel Consumption | 1.84 gph |
| BTU Per Hour | 257,600 |
| Drive Type | Belt Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 540.00 lbs. |
| Shipping Weight | 650.00 lbs. |
| Length | 57.00 in. |
| Width | 30.00 in. |
| Height | 41.50 in. |
