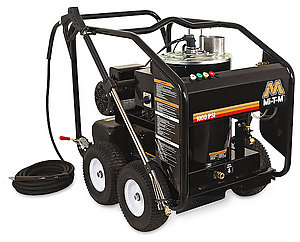

This electric pressure washer is built for industrial cleaning on sites where proper ventilation may not be accessible. It features a top-fired heat exchanger that is completely accessible for troubleshooting.
Pump: Direct drive triplex piston General pump with ceramic plungers · Stainless-steel and brass unloader · Forged brass manifold · Thermal relief valve · High pressure detergent injector
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection · 35-foot power cord
Frame: Reinforced powder coated steel tube frame with center balanced lifting hook · 13-inch flat-free tires
Components: Energy-efficient top-fired heat exchanger designed for convenient troubleshooting and easy maintenance · No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)
Miscellaneous: Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
Unit Includes: Quick connect nozzles - 0°, 15°, 25° and 40° · 50-foot x 3/8-inch steel wire-braided high pressure hose with quick connects, swivel and bend restrictors · Adjustable pressure insulated dual lance · Professional-grade insulated trigger gun with safety lock-off
MSRP: $5,682.00
| PSI | 1000 |
| GPM | 2.0 |
| Horsepower/Motor | 1.5 HP, 120V, 1Ø, 15.0A |
| Pump | General |
| Plug Type | NEMA 5-15P |
| Burner Fuel Tank Capacity | 4.0 gallon |
| Burner Fuel Consumption | 1.33 gph |
| BTU Per Hour | 186,000 |
| Drive Type | Direct Drive Pressure Washers |
| Mobility | Portable Pressure Washers |
| Water Temperature | Hot Water Pressure Washers |
| Net Weight | 295.00 lbs. |
| Shipping Weight | 418.00 lbs. |
| Length | 43.00 in. |
| Width | 29.50 in. |
| Height | 36.50 in. |
300°F Steam HX-0232
Reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F
Adjustable Thermostat HX-0233
Operator is able to adjust outlet water temperature between 86°-248°F
Hour Meter HX-0235
Displays the number of hours unit has been in operation
Auto Start/Stop HX-0237
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled unit will restart
Time Delay Shutdown HX-0238
Timer will shut unit off automatically when trigger gun is released and timer reaches setting
