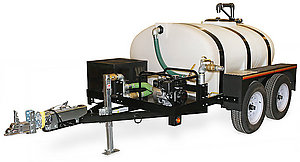

Control dust on every jobsite with the Mi-T-M dual-axle, 510-gallon water trailer. Offering rear spray, fire and garden hose hook-ups and hydrant fill capabilities, this tough and durable water trailer is perfect for cleaning parking lots, heavy equipment, streets, and a host of other applications. Pair with a 2-inch semi-trash pump and tackle any job requiring portable water.
Tank: 510-gallon elliptical low profile 3/8-inch thick polyethylene · 16-inch manhole with 4-inch vent and sump drain
Central Manifold: Easy-to-operate butterfly brass valves
Plumbing: 1-1/2-inch fire hose hook-up with 50-foot x 1-1/2-inch hose and fog nozzle · Break-away hydrant fill with 25-foot x 1-1/2-inch hose · Dual rear spray heads · Garden hose connector · Manifold discharge system · Water hammer prevention valve
Trailer: DOT approved · 12-inch underclearnace at axle · 7,000-lb side-mount crank jack · Dual leaf spring suspension · Rubber mounted sealed lights · Wire storage basket · Two safety chains with snap hooks
| Displacement/Engine | 118cc Honda GX120 OHV |
| Pump | 2in. semi-trash |
| Coupler | 2in. |
| Tires | (4) ST225-75 15in. |
| Axles | (2) 3,500 lb. tandem with hydraulic surge brakes |
| Bed Frame | 5ft.x8ft. |
| Trailer Weight (Loaded) | 5,900 lb. |
| Net Weight | 1580.00 lbs. |
| Shipping Weight | 1580.00 lbs. |
| Length | 163.00 in. |
| Width | 82.00 in. |
| Height | 70.00 in. |
Hard Suction Option TX-0008
Allows you to draw water from an auxiliary source (pond, water pit, etc.). The fire hose is designed to be used with pressurized water and lays flat for easy storage.
Trailer Hitch TX-0010
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware
·Adjustable trailer coupler hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers
·Heavy-duty, 2-inch trailer hitch with pin-style fastener trailer coupler and hinged ball socket with visual indication of proper closure around the ball - all to ensure a quick, easy and secure hook-up
Trailer Hitch TX-0019
Replaces the standard 2-inch ball hitch with an adjustable trailer coupler hitch or lunette ring hitch. Includes hitch with brackets and hardware
·Lunette ring hitch for use with AW-9000-0003, AW-9000-0004 and AW-9000-0008 trailers
·3-inch integrated lunette ring for use with pintle hitches
